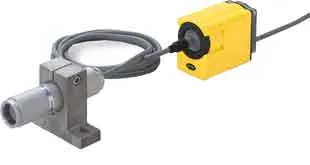

BS Series

‍Non-contact thermometer

‍

Separate sensor for flexibel installation

BS Series

0 to 500℃

‍

Features

• Separate sensing head and electronics housing the BS Series are non-contact thermometer with separate sensor and electronics unit.
• With using an air purge/water cooling jacket, it improves sensor’s ability to operate in various environment
• Amplifier unit with display The first non-contact thermometer of its class incorporating a digital display, setting panel, and output function. High noise resistance and accurate temperature measurement with stable operation due to Stainless Steel Housing and silicon lens.
• Three-type optics Long focus type, narrow focus type and mocroscopic type is available.
• Two-type analog outputs 4-20mA type is suitable for long-distance transmission, and 1mV type is suitable for the connection with a panel meter.

Optical Specifications

‍

BS-30T

‍

BS-05T

‍

BS-02T

‍

• The optical resolution values stated above are at 90% energy.
• The size of the measuring object should be sufficiently larger than the spot size.
• The BS-02T requires the measuring object should be approx. 1.5 times larger than the spot size.

‍

Optional Accessories

‍

8M extension cable

BS-EC8

Air purge/Water cooling jacket

BS-WP1 (BS-30T/BS-05T)

Sensor mounting bracket

NB-SH30A (BS-30T/BS05T)

NB-SH40A (BS-02T)

‍

Dimensions
