Accurance OV-102

Accurance OV-102 is an anti-tailgating system with human tracking technology and direction-determining capability, for multiple applications. The sensor provides various levels of action in case of tailgating, including “alert/deterrence,” “deterrence/simplified prevention” and “prevention,” according to the security levels customers demand and the situation. The system offers various advanced features, including the Escort Function, which allows entry of a visitor who does not have the authorised credentials needed to enter the secured area, and the external output of images obtained by a detection unit.

The system includes a detection unit OV-102S(E) and a control box OV-102CB(E).

Scenarios‍

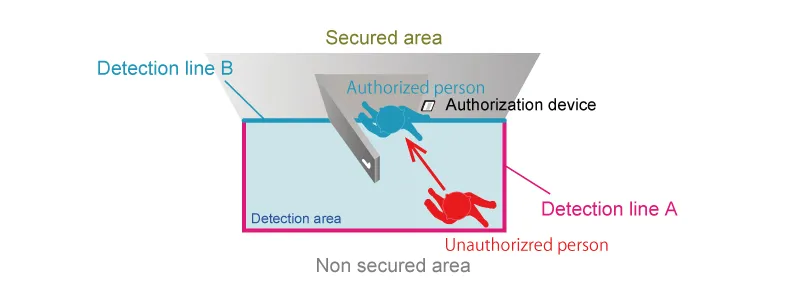

Tailgating entry: Generate output when unauthorised person follows authorised person and pass detection line A(pink line) -> detection line B(blue line).

‍

‍

Note: Another set of the system is required for two way entry.

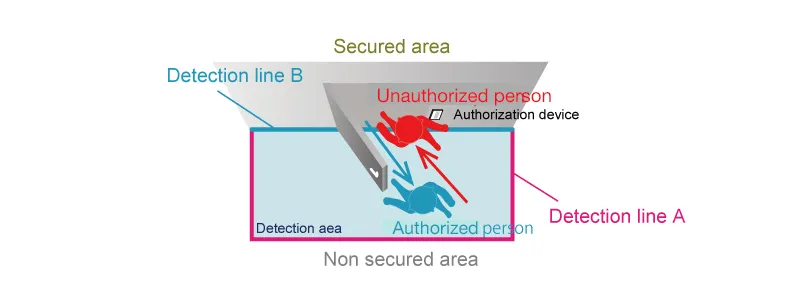

Cross entry: Generate output for unauthorised person entry when authorised person exits.

‍

‍

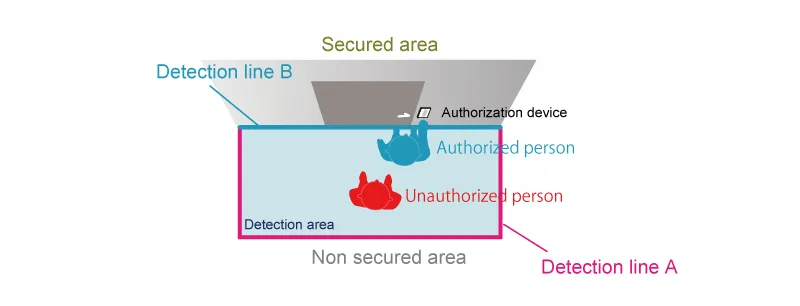

Multiple detection: Generate multiple detection output when multiple people stay in the detection area.

‍

‍

Features

Installation environments vary in terms of layout, type of doors, and illumination arrangements. The OV-102 Series features highly flexible area settings and a “door cancel” function, enabling consumers to construct a security system without constraints.

• Door cancel function
  Ignore door movement on installation side of detection unit.
• Workability
  Install on existing door
• Detection area adjustability
  Detection area can be adjusted after installation of detection unit.
• Sensitivity adjustability
  Sensitivity can be adjusted after installation
