REDWALL Series
Volumetric PIR for Security
Quality detection system for video surveillance

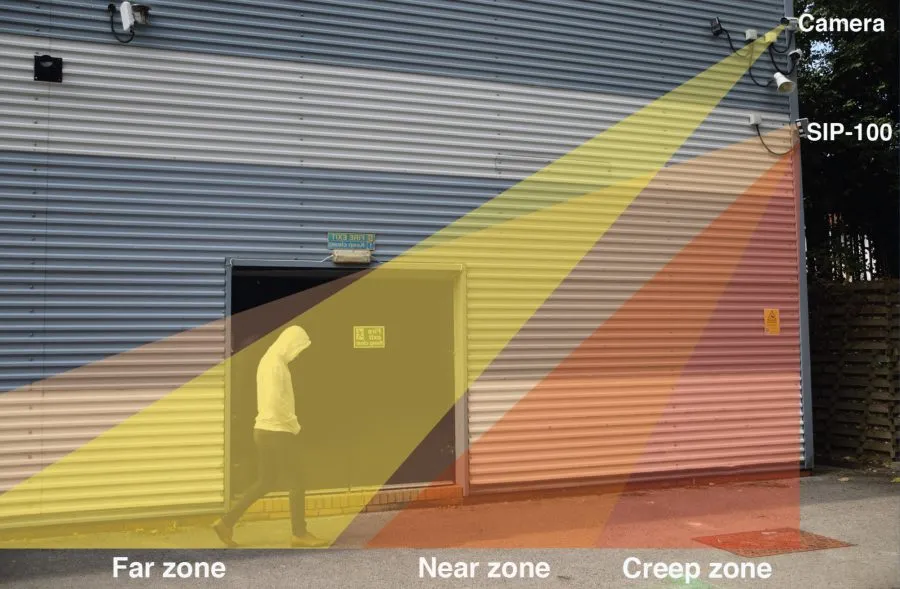

The REDWALL Series provides a wide choice of long-range, volumetric sensors to protect sites, buildings and perimeters against intrusion. All models feature two independent detection zones, far and near; some models feature a third detection area, called creep zone, looking directly under the sensor. The independent detection zones can activate a number of events such as camera pre-set position to provide the visual verification or voice warning to deter intruders to go any further.
Weather and vandal-resistant
External sensors can be subject to considerable environmental changes that can affect performance. The Redwall SIP series automatically adjusts the sensitivity to adapt to the temperature and ambient lighting. The sensitivity can also be configured independently for the near and far zones, the level of detection can be adjusted depending on the intensity of the threat. The stability of the sensors has helped provide thousands of sites with a secure and effective security system, that can be easily monitored locally or via a remote video monitoring center.
Designed to trigger video cameras
The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and trigger the CCTV system when an intrusion occurs. The Redwall SIP-IP series generates a Redwall Event Code to send alarm, tamper and trouble signals via ethernet. This code has been integrated into the Video Management Software (VMS) or in some cases directly to the IP cameras. It allows the intrusion alarm management and visual verification to be centralized.
REDWALL SIP-3020
100' x 65' Superior PIR detector with Anti-Masking & Rotation. Designed to enhance/activate CCTV systems/applications.
- Intelligent PIR detection system
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
REDWALL SIP-4010
130ft. x 33ft. Superior Intelligent PIR detector with Anti-Masking and Rotation. For CCTV systems / applications.
- Intelligent PIR detection system
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
REDWALL SIP-404
130' x 13' Superior Intelligent PIR detector with Anti-Masking and Rotation. For CCTV applications.
- Intelligent PIR detection system
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
REDWALL SIP-3020/5
100' x 65' Superior PIR detector, independent "creep zone detector". With Anti-Masking/Rotation. For CCTV applications.
- Intelligent PIR detection system
- Built-in creep zone detector (Double dual pyro-elements)
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
REDWALL SIP-4010/5
130' x 33' Superior PIR detector, independent "creep zone detector". With Anti-Masking & Rotation. For CCTV applications
- Intelligent PIR detection system
- Built-in creep zone detector (Double dual pyro-elements)
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
REDWALL SIP-5030
165' x 100' Superior PIR detector with Anti-Masking & Rotation. Designed to enhance/activate CCTV systems/applications.
- 2 in one detectors with an independent creep zone sensor unit
- Intelligent PIR detection system
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
REDWALL SIP-100
330' x 10' Superior PIR detector with Anti-Masking & Rotation. Designed to enhance/activate CCTV systems/applications.
- Two in one detector with an independent creep zone sensor unit
- Intelligent PIR detection system
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
- Intelligent PIR detection system
- Designed to trigger CCTV systems
- Two independent detection zones far/near
- Active infrared antimasking and vandal-resistant
REDWALL SIP-4010WF
130' x 33' Battery-Powered, Superior PIR detector with Anti-Masking & Rotation. For CCTV applications.
- Works with most manufacturers wireless systems, battery not included
- Detection of ambient temperature/illuminance. Automatic sensitivity management
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
