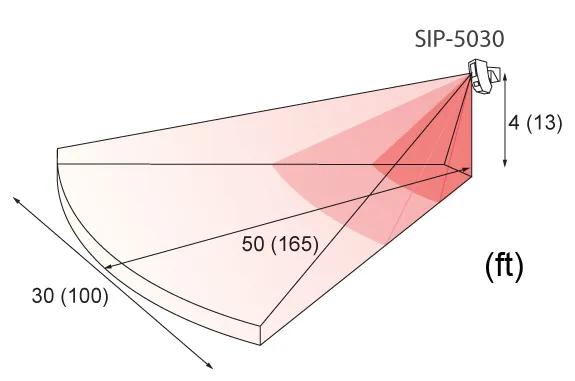

The SIP-5030 offers wide angle-detection for triggering CCTV systems in large areas outside. It has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. In addition, the SIP-5030 has a seperate PIR detector at the bottom of the unit to cover the creep zone area. This second creep zone PIR has an independent output that is separate from the main output, and can be used to protect the area around the detector while the main output can trigger the CCTV system. The detection angle in the main area of the SIP-5030 can be adjusted to easily match a camera's field of view and the unit is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit.

**AVF-1 & AWT-3 Required tools for Proper Installation**

For Installation Training and Certification for this product, please email certifications@optexamerica.com with the following information:
First & Last Name Job Title Company Name Phone Number Email Project Name Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
Features:
2 in one detectors with an independant creep zone sensor unit to cover the area between the detector and the buidling Intelligent PIR detection system Automatic sensitivity management to ambient temperature and light Advanced detection algorithm Double dual/one Quad pyro-elements with patented Double Conductive Shielding for main area Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer 7.6ft to 13ft mounting height Independant sensitivity for creep/ near and far detection zones Detection logic selector Detection range selector Independant N.C. and N.O. outputs for main areas Adjustable alarm interval time
