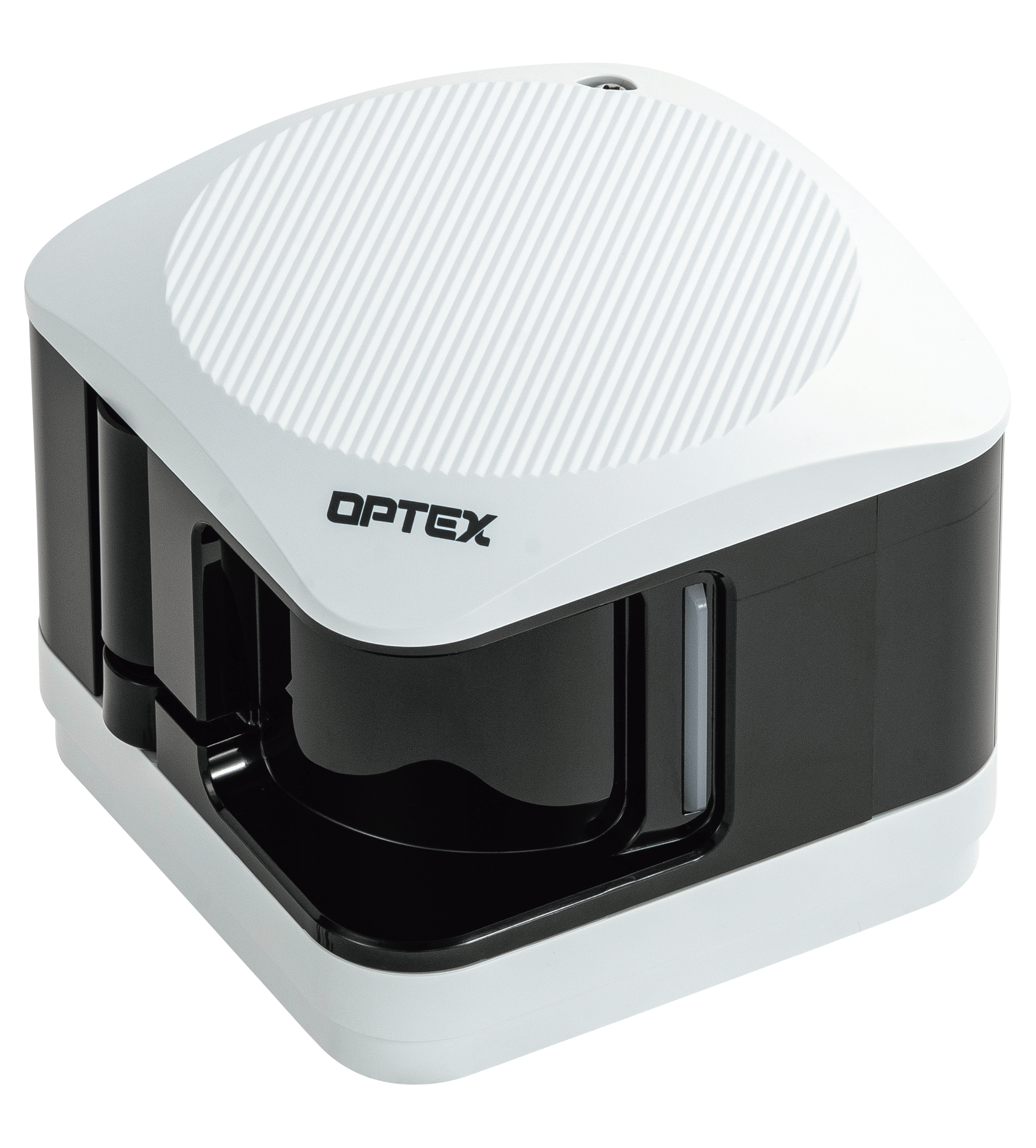

REDSCAN Lite RLS-1010L

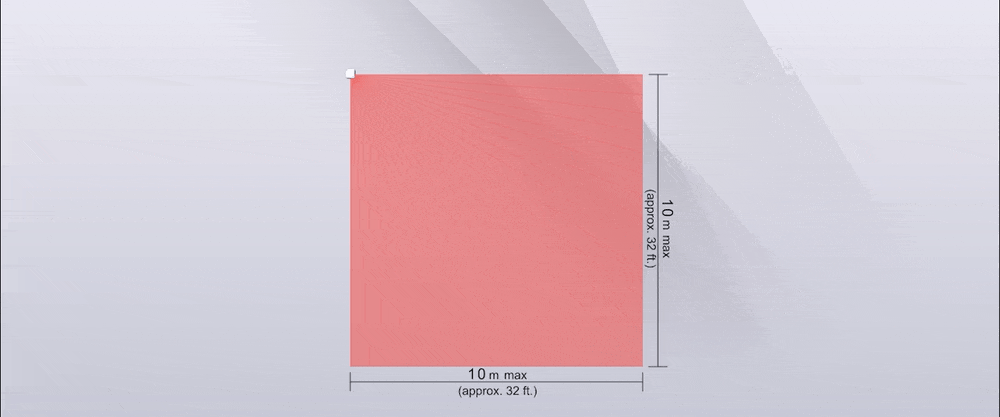

The REDSCAN Lite is a compact and intelligent indoor LiDAR sensor that brings reliable intrusion detection to sensitive indoor zones like datacenter server cages, retail merchandise cabinets, inventory shelving, glass partitions, and skylights. With its 33 × 33 ft (10 x 10m) detection area and precise object tracking capabilities, it delivers advanced protection for mission-critical areas without the complexity of traditional detection systems.

Engineered with a streamlined form factor and intuitive setup features, REDSCAN Lite makes high-performance detection more accessible than ever.

Key Features

Advanced Intrusion Detection for Indoor Applications

• 2D LiDAR scanning with 95-degree field of view
• Tracks size, speed, and location of moving targets
• Ideal for walls, doors, skylights, server racks, and shelving

Smart Setup Without Power

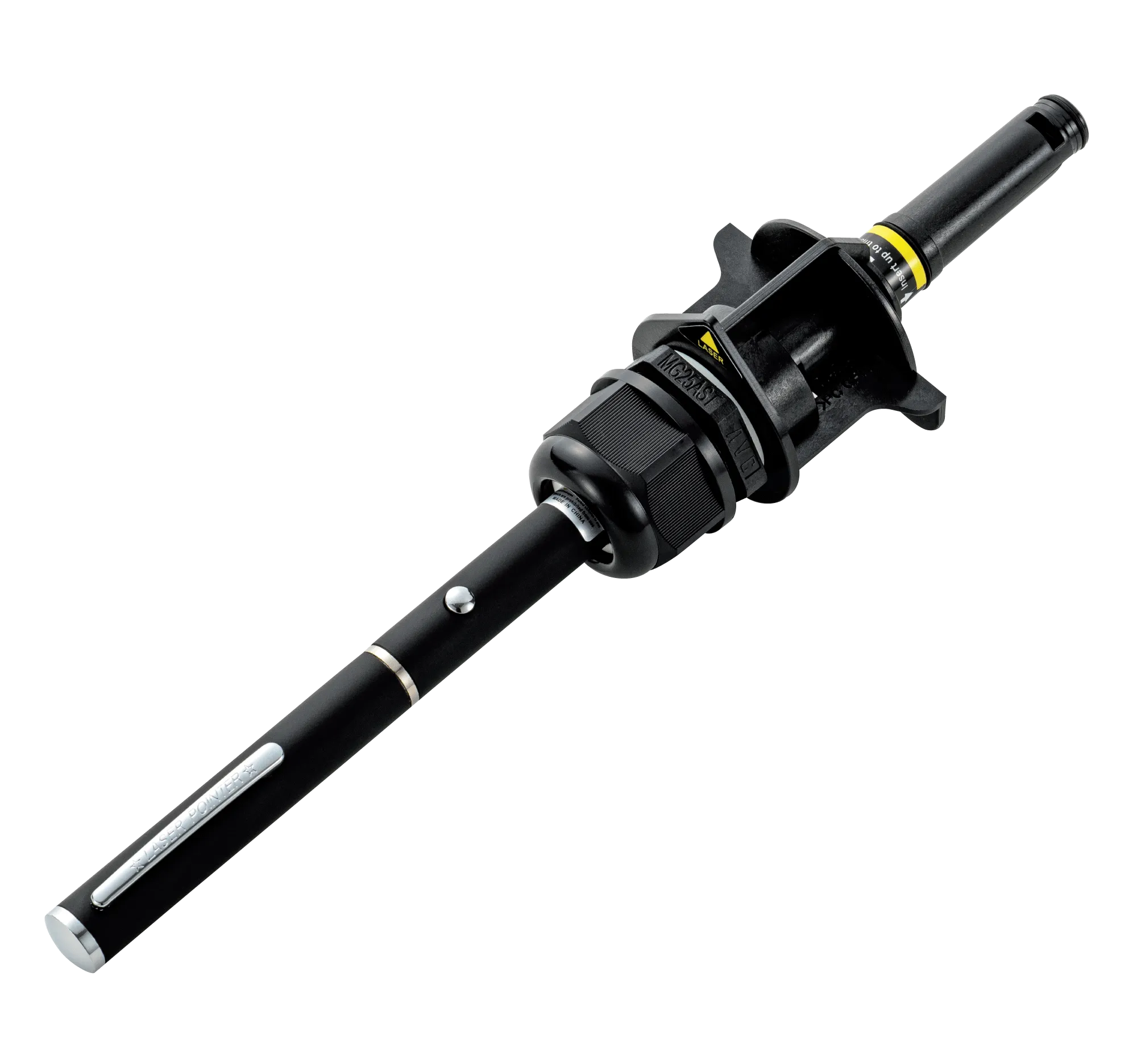

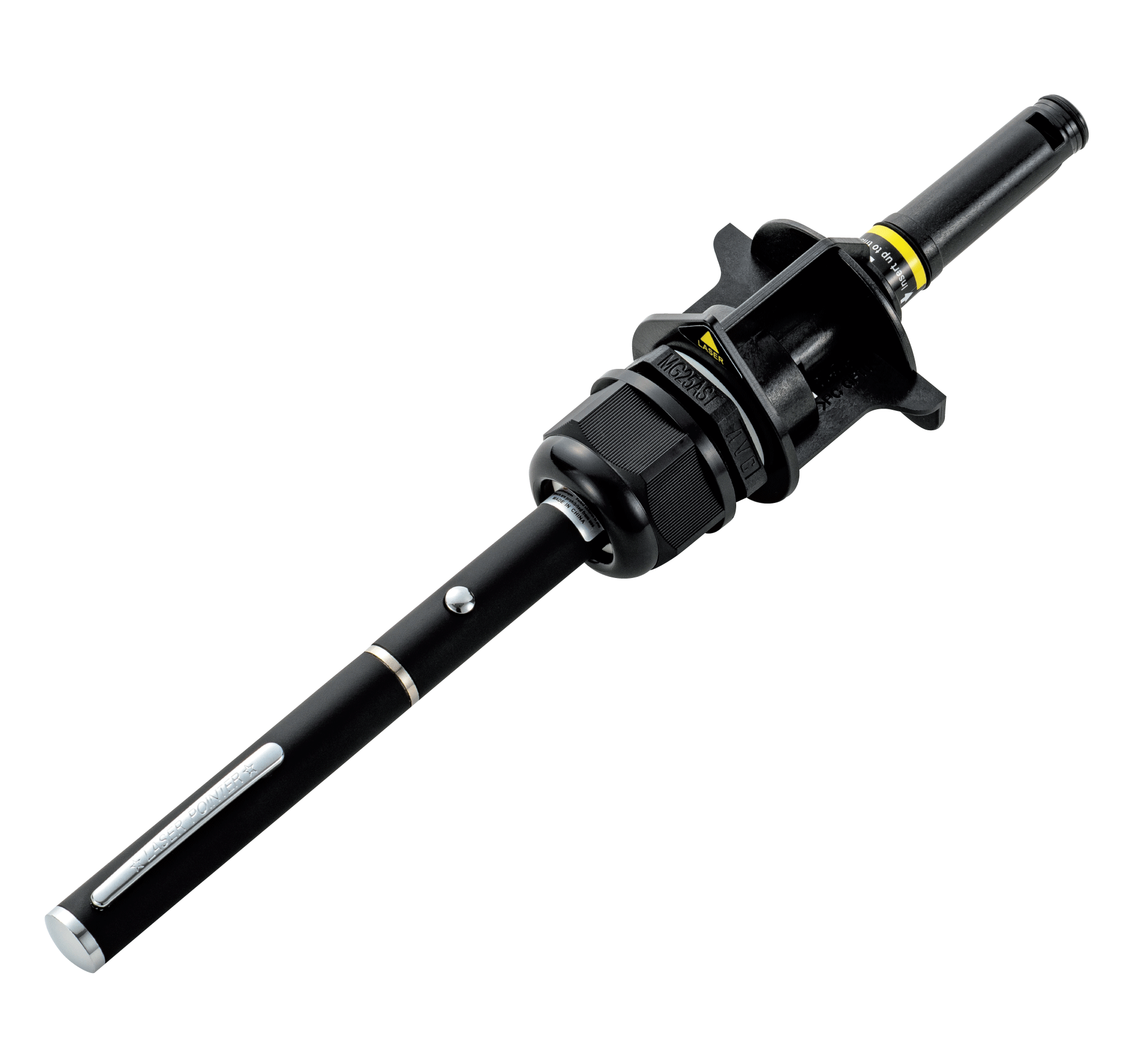

• Visualize detection zones instantly with optional RLS-LAT Laser Alignment Tool
• Tool-less angle adjustment (±3 degrees) using built-in knobs
• Supports PC-less installation and alignment

Auto Area Learning and Dynamic Analysis

• Self-calibrates detection area during startup to avoid overspill or false triggers
• Detection History Log helps fine-tune sensor performance in real time

Real-Time Feedback

• Built-in external LED indicators provide at-a-glance detection and alignment status
• Simplified web interface for setup, maintenance, and parameter adjustments

Flexible Mounting and Power Options

• Horizontal or vertical mounting for wall, ceiling, or angled bracket installations
• Selectable PoE or 12–24V DC input through a single interface
• Mounts easily using A-directional plate, compatible with junction boxes and tight spaces

Globally Compliant

• Manufactured in Japan
• TAA and NDAA compliant

Typical Applications

• Datacenter server cage protection: Detect unauthorized access around sensitive server racks in data centers and secure IT rooms. REDSCAN Lite helps maintain strict access control in high-security environments.
• Skylight Monitoring: Mounted overhead, the sensor provides discreet coverage for skylights and open ceiling areas, detecting intrusions from above with precision.
• Glass Wall and Window Coverage: Ideal for monitoring interior glass partitions and windows, REDSCAN Lite can detect movement or presence near vulnerable indoor boundaries.
• Inventory and Shelf Security: Protect warehouse shelving, retail displays, or storage racks by detecting tampering, item removal, or unauthorized activity near inventory.
• Corridor and Access Zone Security: Create virtual walls across hallways or restricted areas to prevent unauthorized movement within a facility, supporting secure traffic flow.

Mounting Options

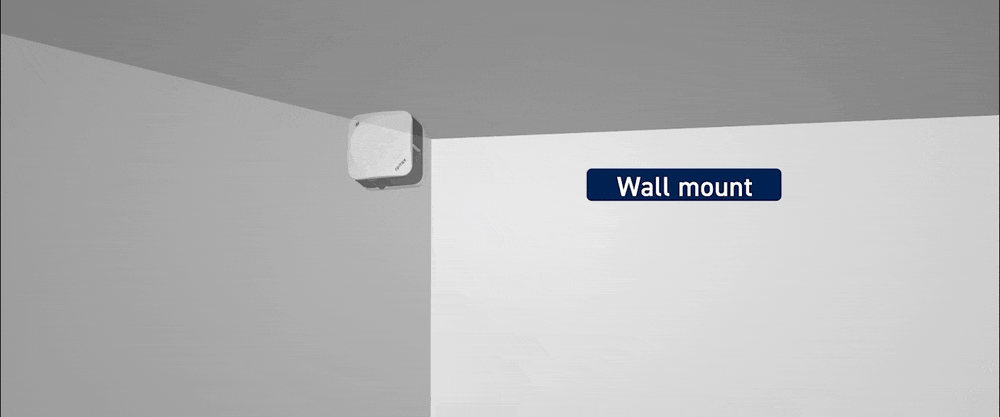

• Wall Mount: Cover corridors, doors, and window zones
• Ceiling Mount: Ideal for overhead detection above entrances or racks

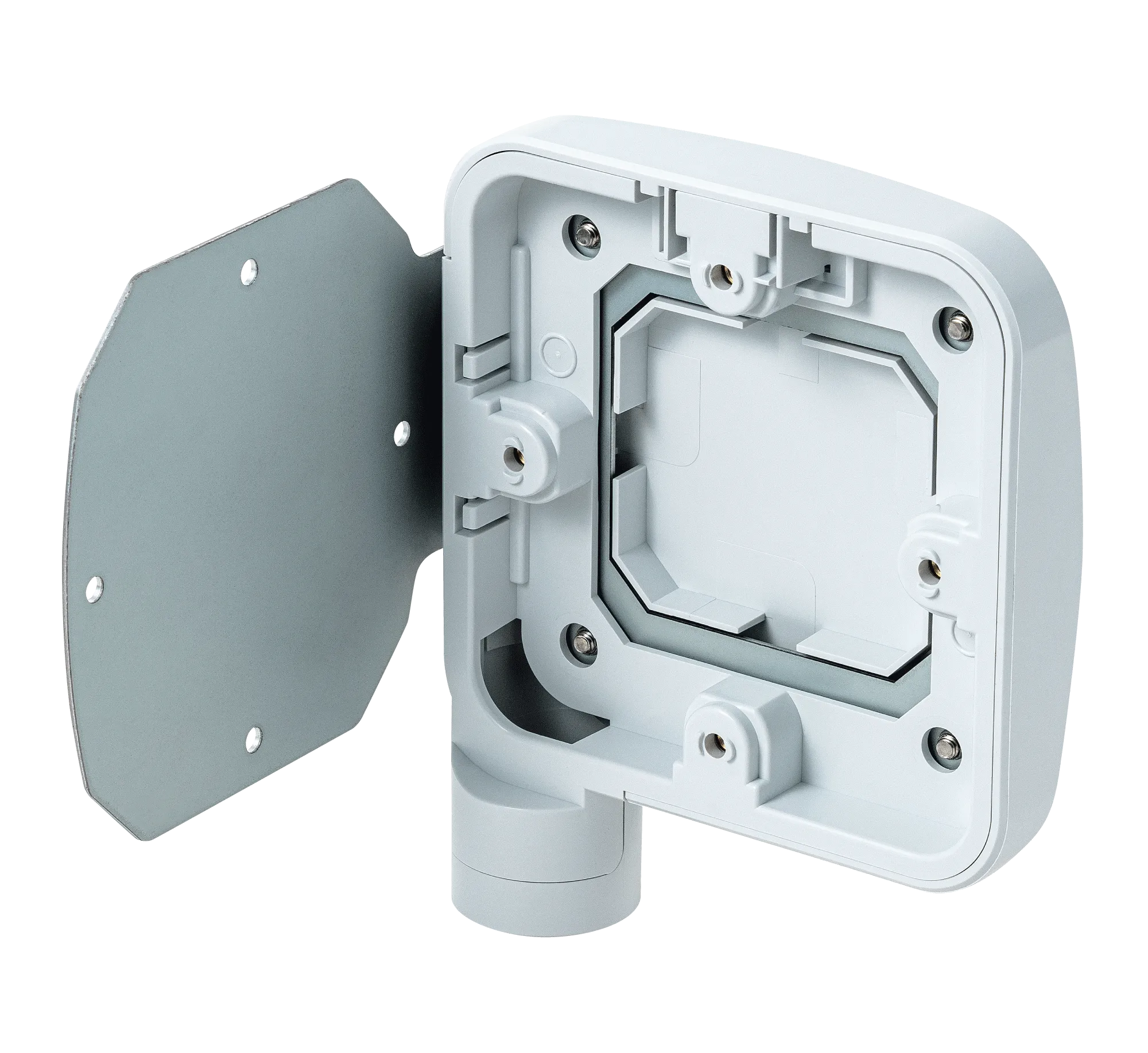

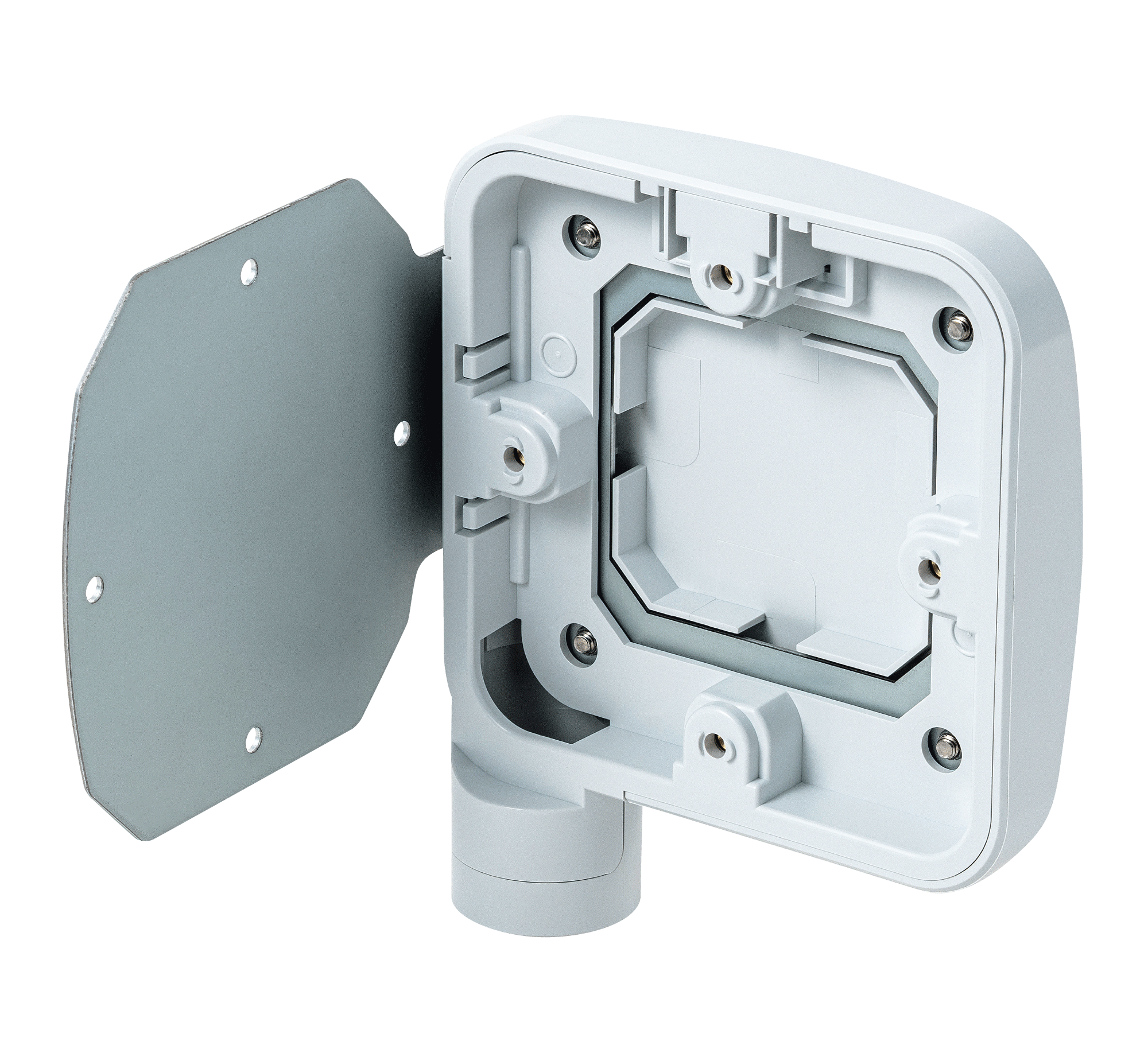

• Bracket Mount: Use optional bracket (RLS-LBL) for angled detection

‍

Why Choose REDSCAN Lite?

The REDSCAN Lite combines high-performance LiDAR technology with simplified setup and flexible mounting options. Whether you are protecting mission-critical assets or creating invisible detection walls inside facilities, REDSCAN Lite delivers intelligent detection in a compact form. Itis designed for fast deployment, easy alignment, and reliable indoor operation.

‍

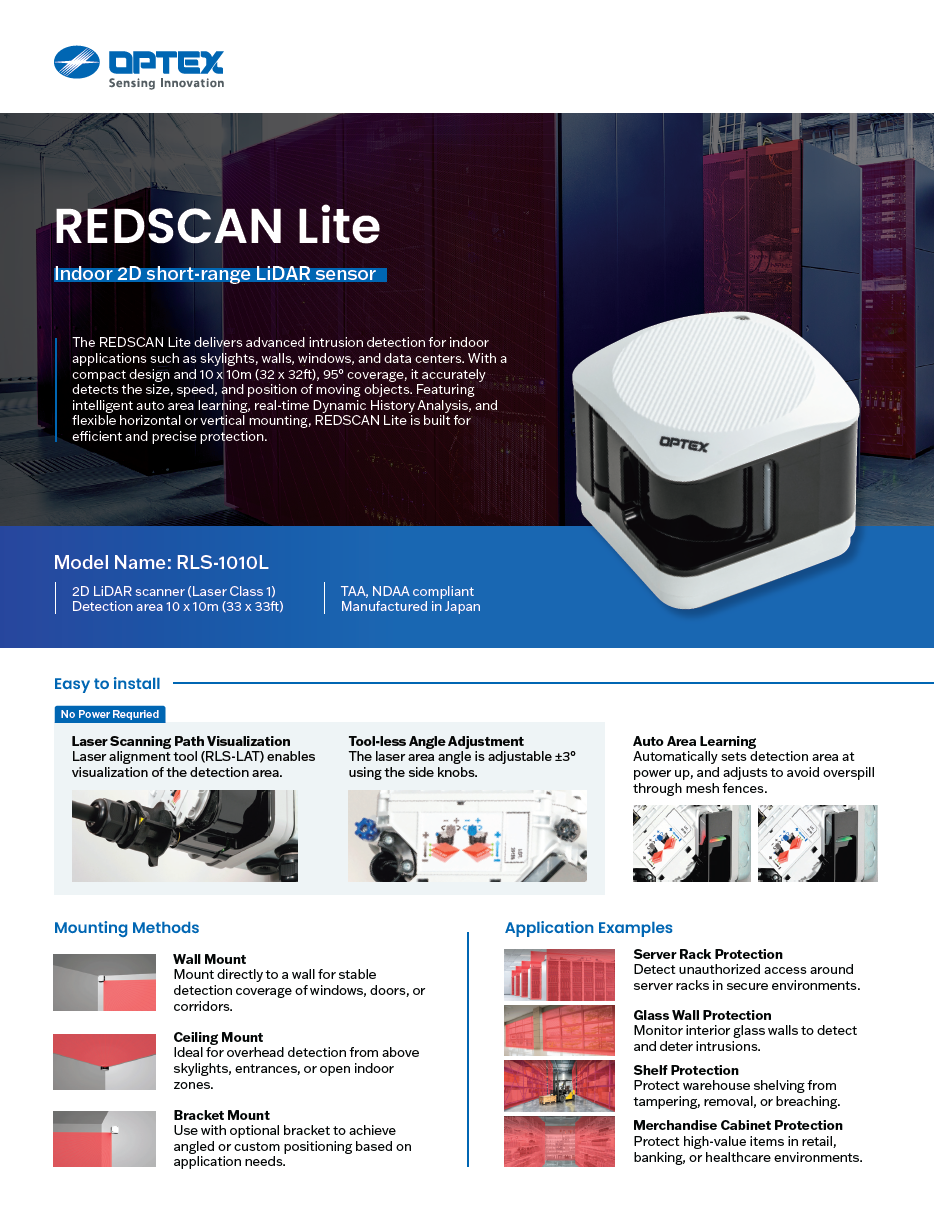

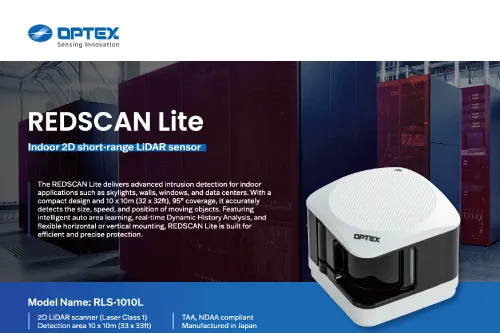

REDSCAN Lite Overview
