Product Details

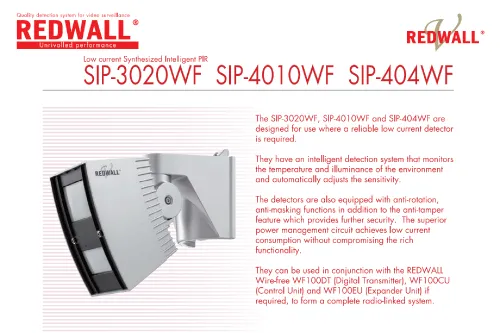

The SIP-4010WF is a battery powered PIR detector that offers mid range outdoor detection for triggering CCTV systems. It is compatible most manufacturers wireless transmitters, eliminating the need to run wire to power the detector. The SIP-4010WF is also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality. (Battery and backbox not included.)
**AVF-1 & AWT-3 Required tools for Proper Installation**
| For Installation Training and Certification for this product, please email certifications@optexamerica.com with the following information: | ||
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained) | ||
| Features: | ||
|
OPTEX National Defense Authorization Act Declaration
Applications
- Buildings
- Approach
Key Features
- Works with most manufacturers wireless systems, battery not included
- Detection of ambient temperature/illuminance. Automatic sensitivity management
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
Once the Redwall SIP unit is mounted on the wall or a pole, ideally at a height of 13 feet – or at least above 7 feet, the View Finder should be plugged onto the sensor using the two holes to secure it. The correct viewing plate should be inserted – each SIP model has a corresponding viewing plate. Looking through the plate, the sensor should be adjusted to ensure that it is grounded at the maximum detection distance. For instance, for a SIP-3020, the sensor should be grounded (not directed towards the sky) at 100 feet. Additionally, it is best to avoid having the detection area right at the edge of the security area, rather it is best practice to leave 3 feet either side. If the detection area is 65 feet wide, it is better to center the view at 36 feet from the edge on either side. If required, masking sticks can be used to mask part of the detection area. Watch our video tutorial
The detection will be less accurate. Ensure that the SIP is not installed higher than the recommended height which is 13 feet.
Downloads
FAQs
Once the Redwall SIP unit is mounted on the wall or a pole, ideally at a height of 13 feet – or at least above 7 feet, the View Finder should be plugged onto the sensor using the two holes to secure it. The correct viewing plate should be inserted – each SIP model has a corresponding viewing plate. Looking through the plate, the sensor should be adjusted to ensure that it is grounded at the maximum detection distance. For instance, for a SIP-3020, the sensor should be grounded (not directed towards the sky) at 100 feet. Additionally, it is best to avoid having the detection area right at the edge of the security area, rather it is best practice to leave 3 feet either side. If the detection area is 65 feet wide, it is better to center the view at 36 feet from the edge on either side. If required, masking sticks can be used to mask part of the detection area. Watch our video tutorial
The detection will be less accurate. Ensure that the SIP is not installed higher than the recommended height which is 13 feet.
