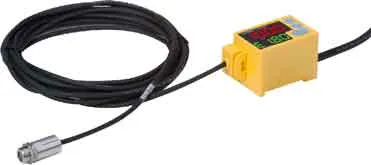

CS Series

Non-contact thermometer

High performance in harsh environment

Compact and rugged sensor head

CS series
-40 to 500°C

CS-HT series
0 to 1000°C

‍

Features

• Smallest sensor head worldwide, installable in a limited space
• Usable up to 180°C ambient temperature without cooling
• Highest waterproof rating IP69K
• Unique water repellent coating, easy maintenance
• 6 kinds of optical specification
• Large digital display with 7-segment LED
• Easy temperature adjustment -2 points teaching function

‍

Optical Specifications

• The optical resolution value stated above are at minimum 90% energy
• The size of the measuring object should be sufficiently larger than the spot size
• CF lens requires the target object to be approx. 1.5 times larger than the spot size

‍

Dimensions

‍

Optional Accessories

‍

Air Purge Collar

‍

Laser Marker

‍

Sensor Mounting Bracket

‍

CF Lens

‍

Protection Jacket for amplifier
