Product Details

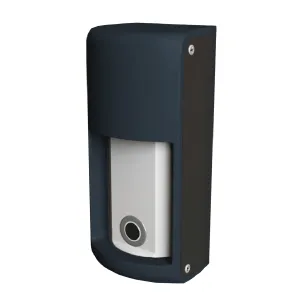

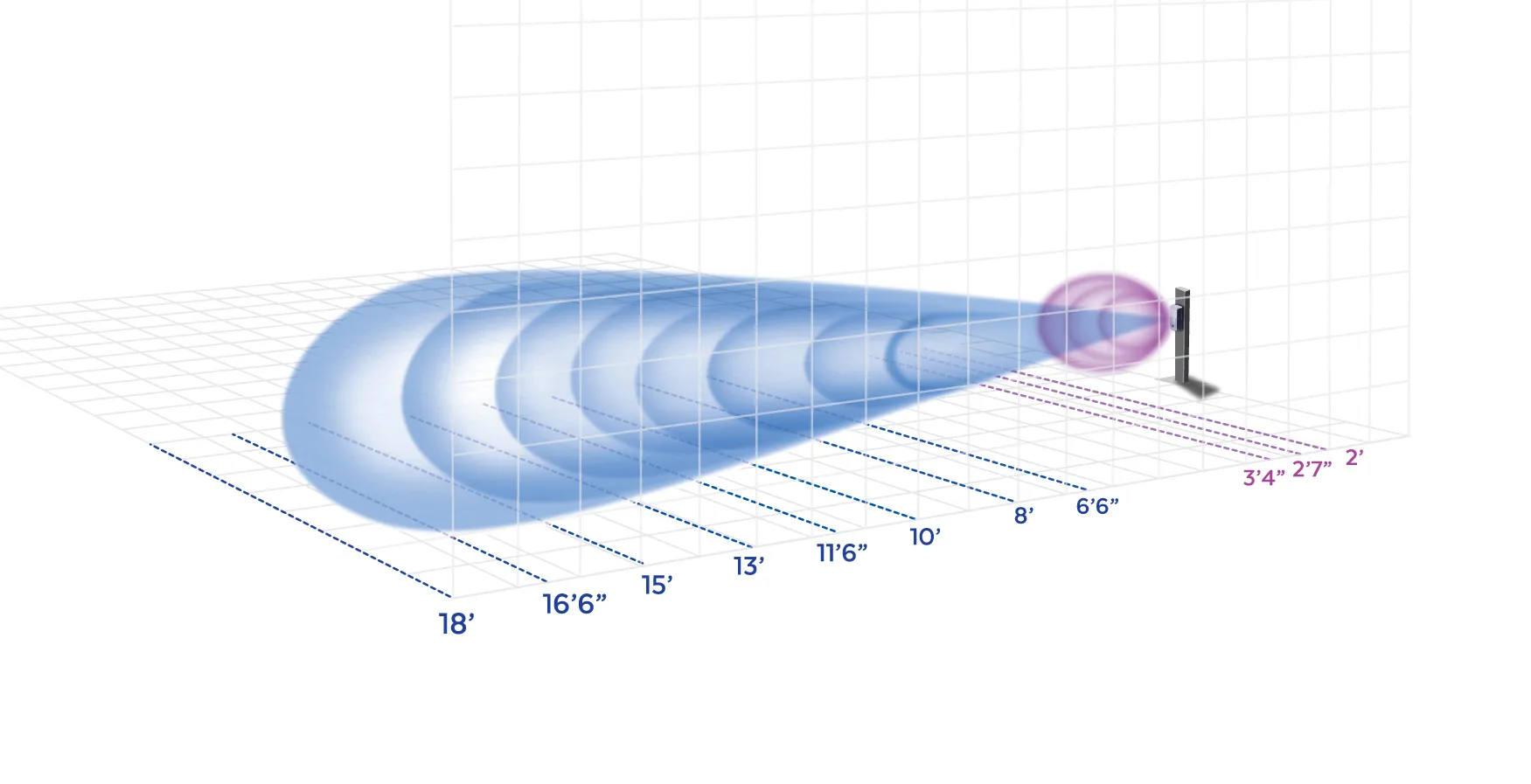

The OVS Vehicle Presence Sensor Series from OPTEX is designed to reliably detect the presence of a stationary or moving vehicle while also having the ability to ignore most human traffic. It eliminates the hassles associated with the installation of a ground loop, omitting the need for concrete cutting. With 8 adjustable microwave and ultrasonic (for OVS-01GT) detection pattern settings to customize the detection area, 5 sensitivity settings to ignore human movements, and one-touch calibration, the OVS-01GT can reliably detect both small and large vehicles for a multitude of applications.

The OVS-01GT can be mounted and installed quickly without impeding traffic flow, and wires directly to the operator without the need for any additional loop detectors or special programmers. A simple-to-use menu with visual indicators aids in an easy and fast installation process. Once mounted, the OVS-01GT also allows for full adjustment without the need for lifts or ladders.

OVS-01GT Vehicle Presence Sensor Installation Guides

Slide Gate: Free Exit

Slide Gate: Vehicle Protection

Swing Gate: Shadow Loop

Swing Gate: Vehicle Protection

Barrier Arm: Activation (ticket/RFID/Keypad activation)

Barrier Arm: Vehicle Protection

Barrier Arm: Articulated Barrier

Industrial Doors: Vehicle Protection

OVS-01 GT Wiring Diagrams
All-O-Matic	Free Exit DC1 Free Exit DC2 Free Exit AC
AutoGate	Vertical Lift Gate - Free Exit Vertical Lift Gate - Shadow Loop Vertical Lift Gate - Obstruction or Reverse Loop
BFT	BFT slide gates, free exit BFT slide gates, Reverse or Obstruction
DoorKing	DKS 1175 Overhead Door - Free Exit DKS 1175 Overhead Door - Obstruction or Reverse Loop
Eagle	Eagle X9 Eagle Diamond DC Eagle slide gates
Elite	SL3000UL Free Exit SL3000UL Obstruction or Reverse Loop
FAAC	FAAC slide gates
Ghost Controls	Swing Gates - Free Exit Swing Gates - Obstruction or Reverse Loop
LiftMaster	Obstruction or reverse loop Free Exit / Turned 90°
Linear	GPX-SL25 - Slide Gate - Free Exit APeX Controller - Slide Gate - Free Exit APeX II Controller - Slide Gate - Free Exit
Max Controls	Free Exit Slide Gate Free Exit Swing Gate
Mighty Mule	SL2000B - Free Exit SL2000B - Obstruction or Reverse Loop MM271 - Free Exit MM271 - Obstruction or Reverse Loop MM272 - Free Exit MM272 - Obstruction or Reverse Loop MM371W & MM372W - Free Exit MM371W & MM372W - Obstruction or Reverse Loop MM371W & MM372W - Shadow Loop MM571W & MM572W - Free Exit MM571W & MM572W - Obstruction or Reverse Loop MM571W & MM572W - Shadow Loop TS571W - Free Exit TS571W - Obstruction or Reverse Loop TS571W - Shadow Loop
Platnum Access	Free Exit
USAutomatic	Patriot Free Exit Slide Gate Patriot Free Exit Swing Gate Ranger Free Exit Swing Gate
Viking Access Systems	Free Exit Slide Gates Free Exit Swing Gate E4 Free Exit Swing Gate X-390 All Other Swing Gates
