Product Details
The Redscan 2020 series is a next generation short range laser scan detector that provides accurate motion detection for indoor security applications. It expands the current award-winning REDSCAN laser sensor product series with the same proven benefits of its ‘larger’ companions but is lighter, more compact and has a range of additional control and power features similar to those enjoyed by IP Dome cameras. [Certification Required]
Version 3.3.0 Firmware Update:
- Ver.3.3.0 now supports "HTTP notification" with various VMS Platforms.* This incorporates RLS-2020 integration onto AXIS cameras' VAPIX platform.
*Please contact us for more information
| Innovative Compact Design | Suitable for design-centric applications | |

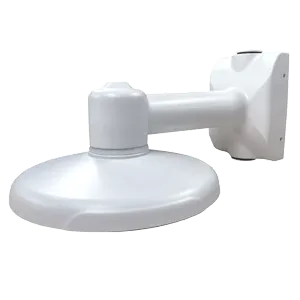

| Flexible Mounting Options | Its multi-angle adjustment and mounting options are scalable across a range of security applications providing flexibility and ease of installation | |
| High Speed and Resolution Detection | Provides pin-point detection of small objects in indoor and outdoor applications complementing camera driven motion detection | |
| Improved Utility Software | Streamlined for easy and flexible settings. It also comes with multiple security detection modes for enhanced motion detection. Can be used as an analog or IP device | |
| IP Integrated | Can be used as an analog or IP device. It is PoE enabled requiring only 6 watts of power and can be integrated with popular VMS, NVR's and PSIM. | |
| Elevate IP Video Surveillance and Detection | Use the RLS-2020 to trigger cameras and motion based events that work in the dark and in tough lighting conditions challenging to video driven motion detection |
**LAC-1 Required tools for Proper Installation**
| For Installation Training and Certification for this product, please email certifications@optexamerica.com with the following information: | ||
|
Certification Required
Applications
- Buildings
- Roof / Ceiling
- House

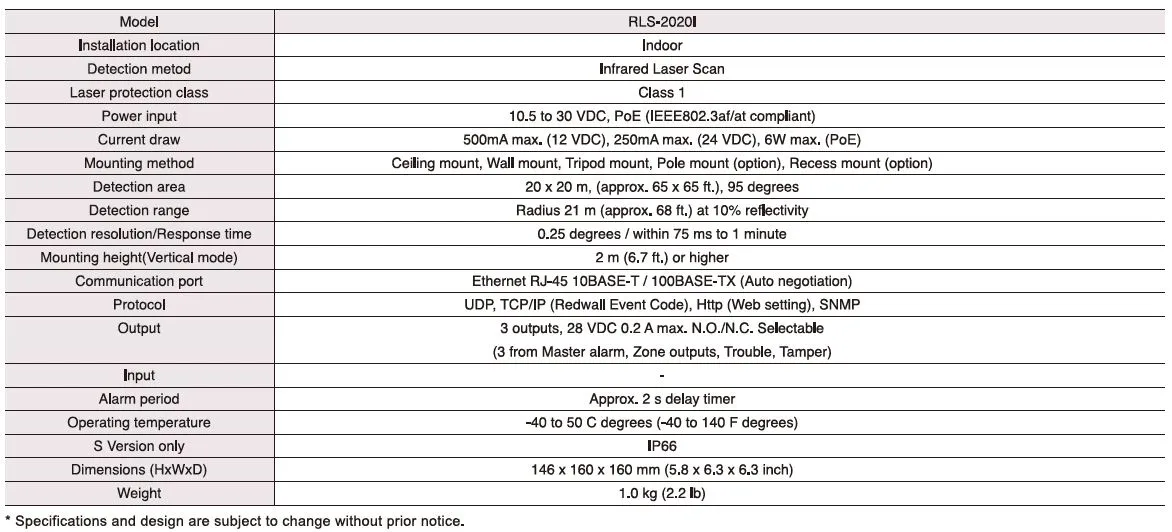

Key Features
- 20m x 20m (65ft. x 65ft.), 95 degree detection area
- Vertical and Horizontal detection modes
- Multi-angle Adjustment Shell Structure (M.A.S.S.)
- Unique detection algorithm
- UDP Broadcast
- UDP Unicast
- UDP Broadcast & TCP
- UDP Unicast & TCP
- First & Last Name
- Job Title
- Company Name
- Telephone Number
- Project Name
The Redscan RLS-2020I and RLS-2020S both require PoE, but will work with PoE+.
The Redscan series generate a Redwall Event Code. This is a simple ASCII character code which can be sent via TCP/IP (for example to a VMS). The Redscan Event Code communication can be set as follows:
In addition to the above, with the RLS-2020 there is also an HTTPS integration.
It can be downloaded from the following link: http://www.optex.co.jp/e/redwall/download/
If you are interested in getting Installation training and certification for Redscan, please email certifications@optexamerica.com with the following information:
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
A large selection of our intrusion detection sensors can be custom painted, including our LiDAR range, our short range outdoor PIRs and dual tech sensors such as the BX, VX and WX series. Some of our sensors though, like our IR beams and beam towers cannot be customized as the housing has been treated with special UV resistant material and the properties of the material would be affected by any coating. It is recommended that you check with your distributor or directly with OPTEX whether your sensor is suitable for customized painting.
What do we mean by customized painting ?
Customizing the sensor means the body of the detector will be coated with either a single color or with a pattern simulating the background surface where the sensor will be installed. Any color variation and many design options can be achieved: the coating can replicate a wood texture, foliage, marble or natural stone, metal, carbon fiber and many more.
Can all the parts of the sensors be coated?
The plastic housing can, but some parts might not be suitable for custom paint, usually the parts next to the lens which are made of a different material
When can a customization be done?
The customization is only available to newly purchased sensors and requires on average 10 working days. Once you have selected the right sensors suitable for your protection needs you should analyze the precise locations where they will be installed in order to establish what will be the background like. At this stage share with our team the RAL code for the color or a high res image of the background where the sensor will be installed. The process of customization is arranged by OPTEX.
Don’ts
We strongly recommend that you don’t try customizing the sensors yourself; applying spray paint will not work, it will damage the sensor and it will invalidate the warranty. The cost for the customization of the sensor varies based on order and type of sensor. Contact OPTEX sales to find out more and discuss your needs.

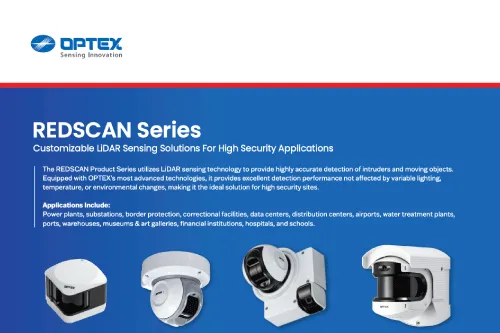

Downloads
FAQs
The Redscan RLS-2020I and RLS-2020S both require PoE, but will work with PoE+.
The Redscan series generate a Redwall Event Code. This is a simple ASCII character code which can be sent via TCP/IP (for example to a VMS). The Redscan Event Code communication can be set as follows:
- UDP Broadcast
- UDP Unicast
- UDP Broadcast & TCP
- UDP Unicast & TCP
In addition to the above, with the RLS-2020 there is also an HTTPS integration.
It can be downloaded from the following link: http://www.optex.co.jp/e/redwall/download/
If you are interested in getting Installation training and certification for Redscan, please email certifications@optexamerica.com with the following information:
- First & Last Name
- Job Title
- Company Name
- Telephone Number
- Project Name
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
A large selection of our intrusion detection sensors can be custom painted, including our LiDAR range, our short range outdoor PIRs and dual tech sensors such as the BX, VX and WX series. Some of our sensors though, like our IR beams and beam towers cannot be customized as the housing has been treated with special UV resistant material and the properties of the material would be affected by any coating. It is recommended that you check with your distributor or directly with OPTEX whether your sensor is suitable for customized painting.
What do we mean by customized painting ?
Customizing the sensor means the body of the detector will be coated with either a single color or with a pattern simulating the background surface where the sensor will be installed. Any color variation and many design options can be achieved: the coating can replicate a wood texture, foliage, marble or natural stone, metal, carbon fiber and many more.
Can all the parts of the sensors be coated?
The plastic housing can, but some parts might not be suitable for custom paint, usually the parts next to the lens which are made of a different material
When can a customization be done?
The customization is only available to newly purchased sensors and requires on average 10 working days. Once you have selected the right sensors suitable for your protection needs you should analyze the precise locations where they will be installed in order to establish what will be the background like. At this stage share with our team the RAL code for the color or a high res image of the background where the sensor will be installed. The process of customization is arranged by OPTEX.
Don’ts
We strongly recommend that you don’t try customizing the sensors yourself; applying spray paint will not work, it will damage the sensor and it will invalidate the warranty. The cost for the customization of the sensor varies based on order and type of sensor. Contact OPTEX sales to find out more and discuss your needs.
