Product Details

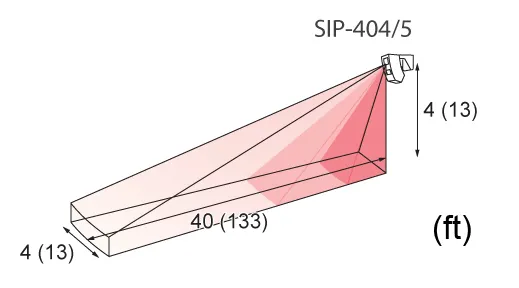

The SIP-404/5 is designed for mid-range outdoor detection applications to trigger video transmission systems and PTZ camera control.The detector has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. It is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-404/5 has an additional PIR detector on the bottom to cover the area just below the unit. The PIR detector on the bottom has an independent output separate from the main detector, while the detection angle in the main area of the SIP-404/5 can be adjusted to easily match a camera's field of view.
**AVF-1 & AWT-3 Required tools for Proper Installation**
| For Installation Training and Certification for this product, please emailcertifications@optexamerica.com with the following information: | ||
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained) | ||
| Features: | ||
|
OPTEX National Defense Authorization Act Declaration
Applications
- Buildings
- Approach
Key Features
- Intelligent PIR detection system
- Built-in creep zone detector (Double dual pyro-elements)
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
Once the Redwall SIP unit is mounted on the wall or a pole, ideally at a height of 13 feet – or at least above 7 feet, the View Finder should be plugged onto the sensor using the two holes to secure it. The correct viewing plate should be inserted – each SIP model has a corresponding viewing plate. Looking through the plate, the sensor should be adjusted to ensure that it is grounded at the maximum detection distance. For instance, for a SIP-3020, the sensor should be grounded (not directed towards the sky) at 100 feet. Additionally, it is best to avoid having the detection area right at the edge of the security area, rather it is best practice to leave 3 feet either side. If the detection area is 65 feet wide, it is better to center the view at 36 feet from the edge on either side. If required, masking sticks can be used to mask part of the detection area. Watch our video tutorial
The detection will be less accurate. Ensure that the SIP is not installed higher than the recommended height which is 13 feet.
Downloads
FAQs
Once the Redwall SIP unit is mounted on the wall or a pole, ideally at a height of 13 feet – or at least above 7 feet, the View Finder should be plugged onto the sensor using the two holes to secure it. The correct viewing plate should be inserted – each SIP model has a corresponding viewing plate. Looking through the plate, the sensor should be adjusted to ensure that it is grounded at the maximum detection distance. For instance, for a SIP-3020, the sensor should be grounded (not directed towards the sky) at 100 feet. Additionally, it is best to avoid having the detection area right at the edge of the security area, rather it is best practice to leave 3 feet either side. If the detection area is 65 feet wide, it is better to center the view at 36 feet from the edge on either side. If required, masking sticks can be used to mask part of the detection area. Watch our video tutorial
The detection will be less accurate. Ensure that the SIP is not installed higher than the recommended height which is 13 feet.
