Product Details
The WX Shield (WXS) Series is a family of high or mount 180° external sensors comprised of 4 PIR and 2 dual tech models, utilizing both analog and digital technologies to detect approaching intrusions. With its wide and comprehensive field of view and the ability to tailor its settings to meet the environment around your premise, the WXS Series will provide an effective solution for new & existing security systems.
Wireless battery-powered PIR model with anti-masking, powered by Inovonics
| Flexible mounting height | Two independent left / right detection areas | Detection analysis and pet tolerance |

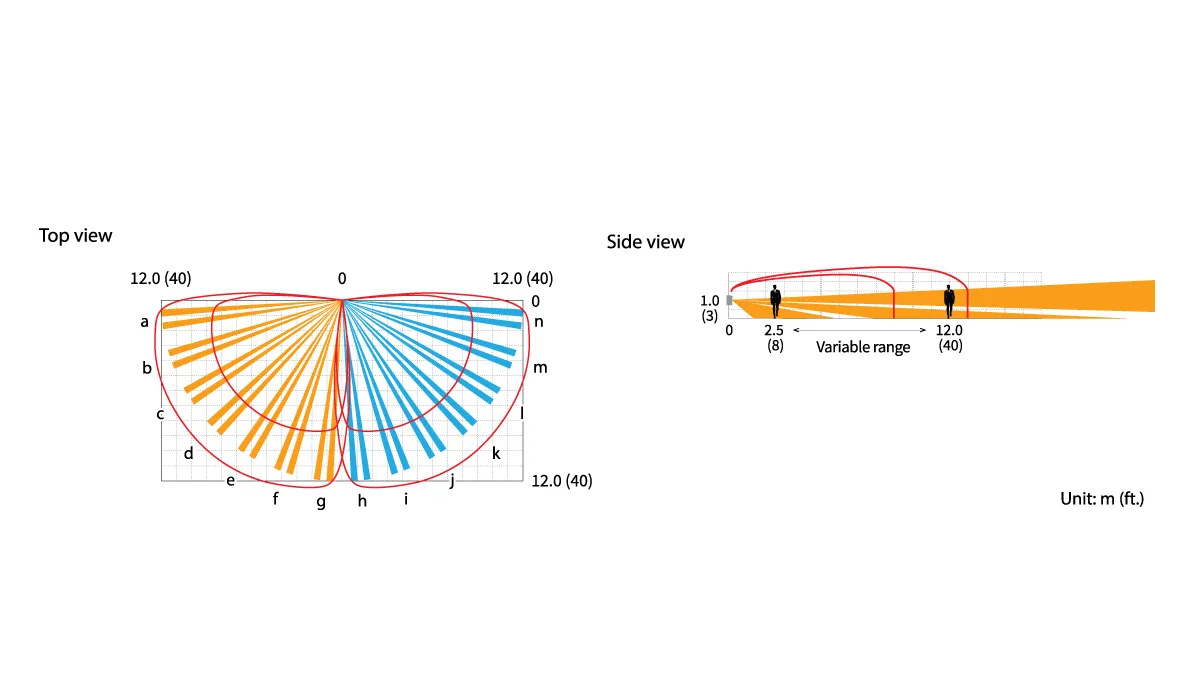

| The WXS outdoor intrusion sensors can be installed at a low mount providing a flexible detection area from 2.5 to 12m. It can also be mounted at 2.0m high, creating a volumetric detection area with 9m detection range. This option can be effective to avoid vandalism or masking of lens. | In low mount configuration, the WXS intrusion detection sensors feature two completely independent 90 degrees detection areas (left and right), that can be set at different detection distance, sensitivity and trigger independent alarm outputs which is very useful for PTZ activation. | The WX Shield outdoor intruder sensors are designed to be pet and animal tolerant which means it will not trigger if cats, dogs, birds are in the detection area making it very stable. Additionally they feature OPTEX Super Multi-dimensional Analyis (SMDA) which can rule out environemental changes such as vegetaion sway, shadow etc making the sensor very reliable. |
Applications
- Buildings
- Approach
- House
- Garden
- Garage
Key Features
- 40' 180 degree wireless outdoor PIR with anti-masking
- 4 PIR providing left/ right double layered detection for pet tolerance
- Selectable low (0.8m-1.2m) or high (2m) mount
- Independent left/ right detection areas and alarm outputs - ideal for CCTV
Power up the sensor as normal and close the cover. When the cover is on, an automatic walk-test function is enabled. After 3 minutes, the sensor will flash quickly for 5 seconds to indicate that the walk test is going to expire.
Downloads
FAQs
Power up the sensor as normal and close the cover. When the cover is on, an automatic walk-test function is enabled. After 3 minutes, the sensor will flash quickly for 5 seconds to indicate that the walk test is going to expire.
