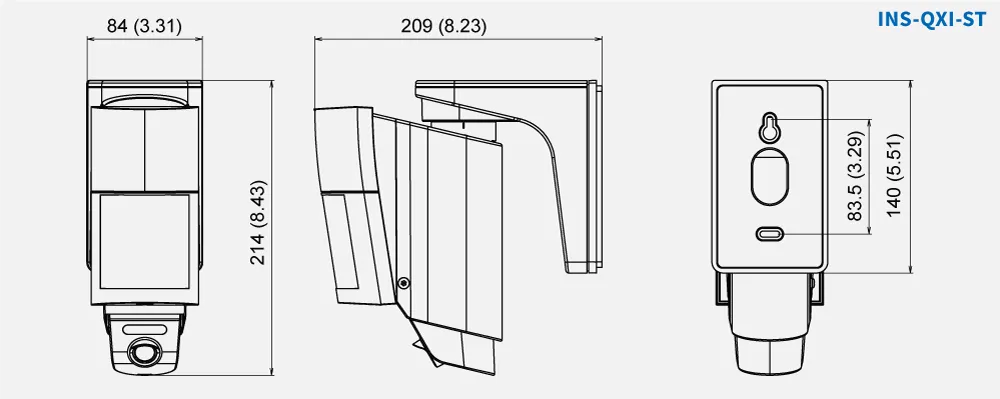

INS QXI ST
InSight Datasheet Screen Shot 2023 03 09 at 10 19 23 AM

Product Details

The InSight series offers a sensor based visual verification solution combining highly effective OPTEX outdoor detection technology with a camera. Not affected by lights, wind, rain, or snow, the InSight minimizes false alarms and features small animal tolerance technology to effectively reduce nuisance alarms. The InSight also simplifies the installation process by matching the camera and sensor field of views, while providing wide and narrow detection range options. The InSight series is ONVIF compliant and can directly connect to the OPTEX Visual Verification Bridge, as well as any DVR, NVR or VMS.

Camera with Intelligent VCA (Video Content Analysis)

  • Clear image day and night with IR illumination
  • No need to match the camera angle of view with the detection area, so there is no mistake
  • Remote configuration of detection areas
  • Flexible VCA detection rule

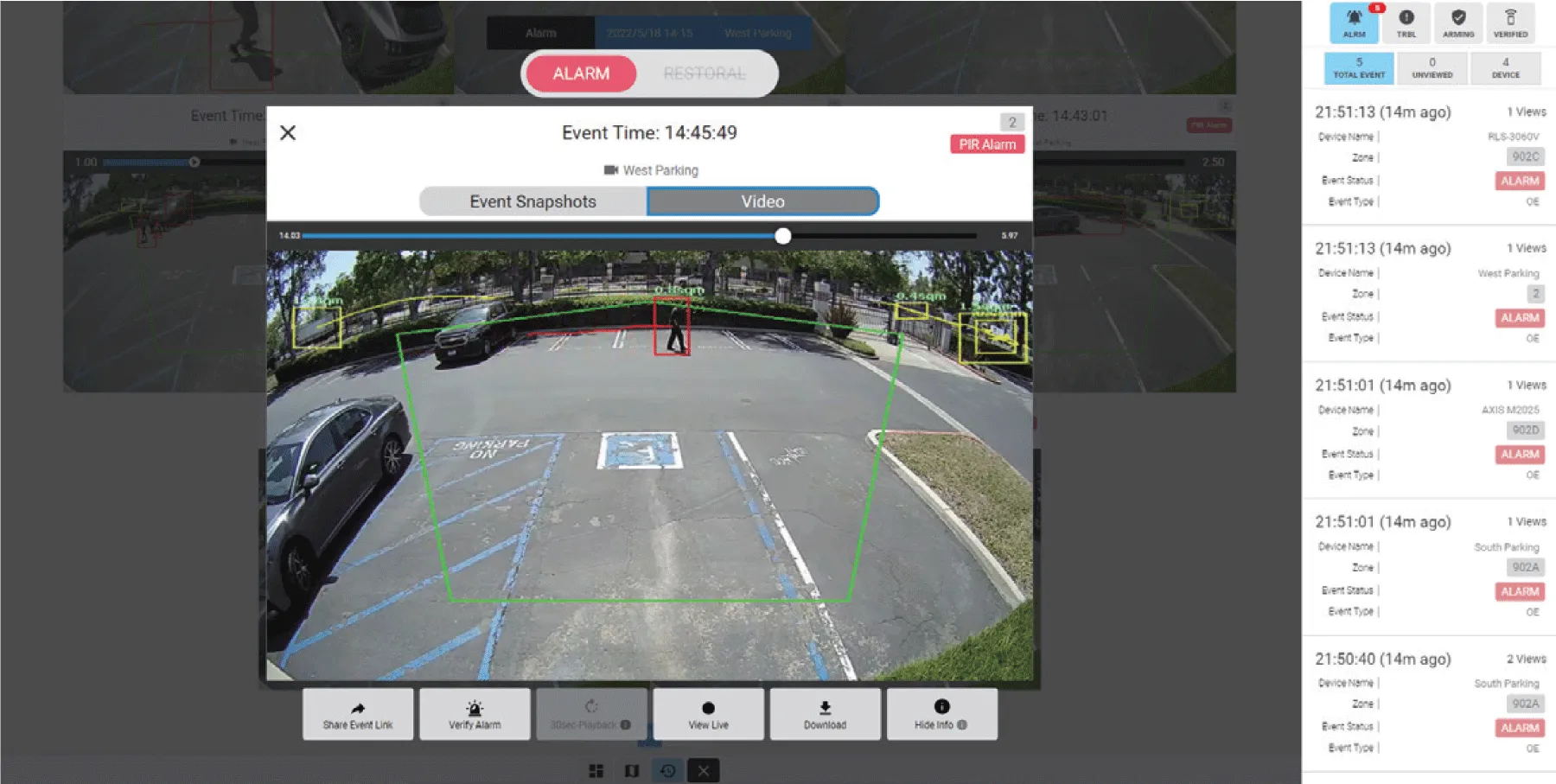

  • Bounding box on video stream can help identify the source of detection

Double Knock Detection from VCA and PIR

  • Both detection of VCA and PIR makes a great contribution to the improvement of the credibility of an alarm signal

Gain Visibility with Optimized Video of the Detection Area

  • No need to match the camera angle of view with the detection area, so there is no mistake.
  • Wide & Narrow detection area model lineup

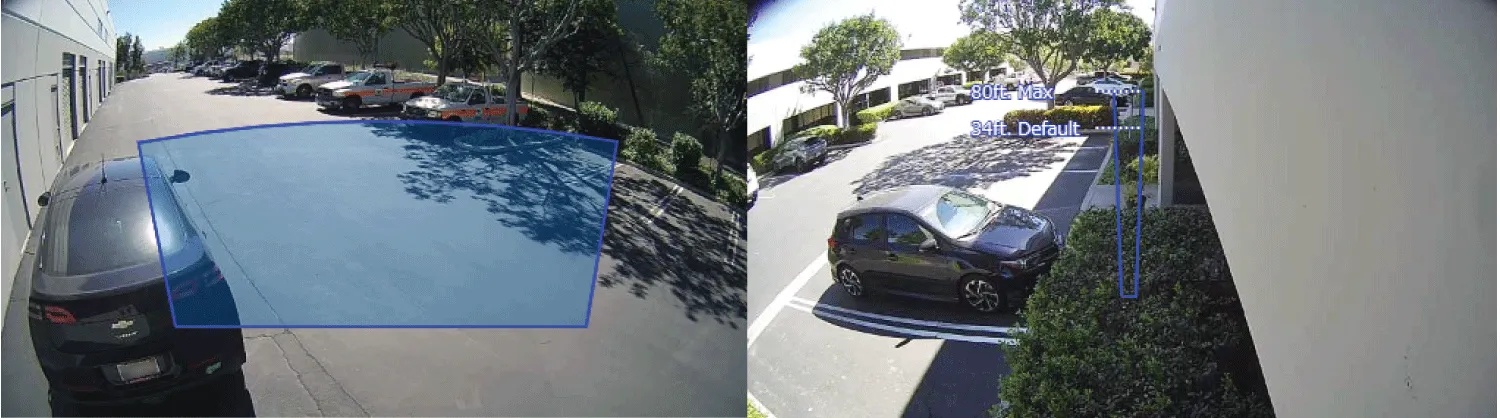

Actual footage:

QXI-ST: QX Infinity PIR Detector

  • 120° wide and 40ft detection area, with OPTEX's new Quad-Element technology providing highly reliable detection performance within a compact and sleek design.
  • Outdoor high mounting (7' 3"- 8'11")
  • Fit for any residential or commercial applications.
  • Multiple level & pet alley pattern. Multi level: 40 zones Pet alley: 18 zones

Easy Setup & Integration with the OPTEX Bridge

  • Easily integrates into new or existing Bridge
  • Fully integrated & certified by Bridge & CHeKT portal

Conformant with ONVIF

  • Anti tamper (scene change detection by VCA)
  • Alert by ONVIF
  • POE: Power Over Ethernet

Fast & Reliable Installation

  • Short installation time from 1 unit installation
OPTEX National Defense Authorization Act Declaration
